MBA/PF

3.050,00

Τεχνικές Πληροφορίες για την Ενεργειακή Εστία Kratki MBA/PF

  1. Μοντέλο: MBA/PF
  2. Ονομαστική Ισχύς: 14 kW
  3. Απόδοση: 81%
  4. Υλικό Κατασκευής:
    • Σώμα: Χάλυβας υψηλής ποιότητας
    • Θάλαμος καύσης: Επενδυμένος με αθρακόμαζα (Acumotte), που αυξάνει τη θερμοκρασία στον θάλαμο καύσης και βελτιώνει την απόδοση.
  5. Διαστάσεις (Πλάτος x Ύψος x Βάθος):
    • Πλάτος: 960 mm
    • Ύψος: 1187 mm
    • Βάθος: 460 mm
  6. Διάμετρος Καπνοδόχου: 200 mm
  7. Βάρος: 219 kg
  8. Καύσιμο: Ξύλο
  9. Θερμαινόμενος Χώρος: Μέχρι 140-160 m²

Χαρακτηριστικά και Λειτουργίες

  • Πόρτα από Ανθεκτικό Κεραμικό Γυαλί: Ανθεκτικό σε υψηλές θερμοκρασίες έως 800°C.
  • Σύστημα Δευτερογενούς Καύσης: Αυξάνει την απόδοση καύσης και μειώνει τις εκπομπές καυσαερίων.
  • Αεροκουρτίνα: Προστατεύει το τζάμι από την καπνιά και διατηρεί το καθαρό.
  • Ρύθμιση Πρωτογενούς και Δευτερογενούς Αέρα: Επιτρέπει τον έλεγχο της καύσης και της θερμοκρασίας.
  • Σύστημα Καθαρισμού Τζαμιού: Μειώνει την ανάγκη καθαρισμού της επιφάνειας του τζαμιού.
  • Εξωτερική Εισαγωγή Αέρα: Επιτρέπει την καύση με αέρα που εισέρχεται από το εξωτερικό του κτιρίου, βελτιώνοντας την απόδοση.
  • Σύστημα Τριτογενούς Αέρα: Επιπλέον βελτίωση της απόδοσης καύσης.
  • Ευρύχωρος Θάλαμος Καύσης: Για μεγαλύτερα κομμάτια ξύλου.
  • Δυνατότητα Ρύθμισης της Έντασης της Φλόγας: Για καλύτερο έλεγχο της καύσης.
  • Εξαγωγή Θερμού Αέρα: Διανομή θερμού αέρα στον χώρο, βελτιώνοντας την θέρμανση.

Επιπλέον Πληροφορίες

  • Πιστοποιήσεις: CE και συμμόρφωση με τα ευρωπαϊκά πρότυπα ασφαλείας και απόδοσης.
  • Εγγύηση: Προσφέρεται συνήθως από τον κατασκευαστή, αλλά μπορεί να διαφέρει ανάλογα με τον πωλητή.

Αυτές οι πληροφορίες καλύπτουν τα βασικά τεχνικά χαρακτηριστικά και τα πλεονεκτήματα της ενεργειακής εστίας Kratki MBA/PF. Για πιο λεπτομερείς πληροφορίες και ακριβείς προδιαγραφές, συνιστάται να ελέγξετε το επίσημο εγχειρίδιο του κατασκευαστή ή να επικοινωνήσετε με έναν εξουσιοδοτημένο προμηθευτή.

Κωδικός προϊόντος: MBA/PF Κατηγορίες: ,
Περιγραφή

KRATKI MBA/PF ΑΝΟΙΓΟΜΕΝΟ 17KW (160-200M2) ΕΝΕΡΓΕΙΑΚΟ ΤΖΑΚΙ ΑΕΡΟΘΕΡΜΟ ΜΕ ΛΕΥΚΑ ΚΕΡΑΜΙΚΑ TERMOTEC

Exceptional care to every detail, excellent technical parameters, precision this are the characteristics of this line of fireplaces.

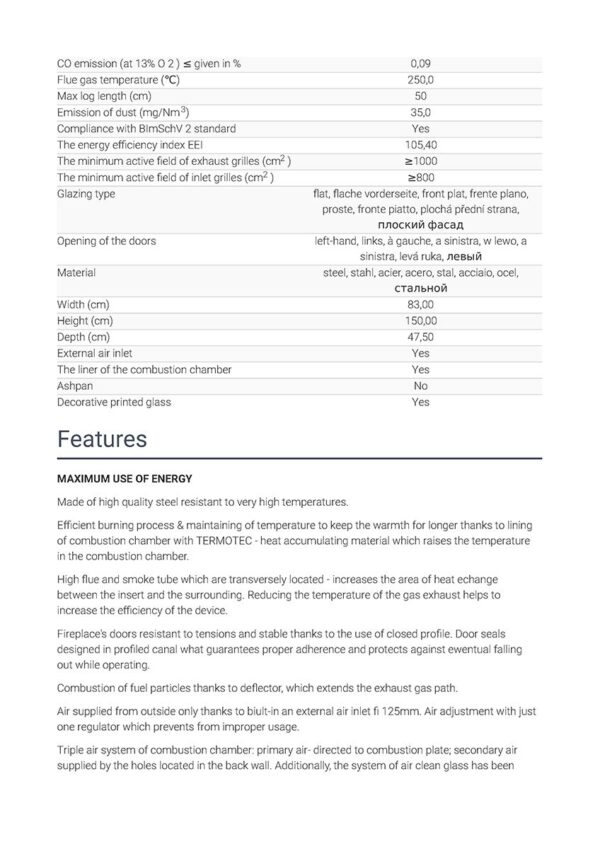

Features

MAXIMUM USE OF ENERGY

Made of high quality steel resistant to very high temperatures.

Efficient burning process & maintaining of temperature to keep the warmth for longer thanks to lining of combustion chamber with TERMOTEC – heat accumulating material which raises the temperature in the combustion chamber.

High flue and smoke tube which are transversely located – increases the area of heat echange between the insert and the surrounding. Reducing the temperature of the gas exhaust helps to increase the efficiency of the device.

Fireplace’s doors resistant to tensions and stable thanks to the use of closed profile. Door seals designed in profiled canal what guarantees proper adherence and protects against ewentual falling out while operating.

Combustion of fuel particles thanks to deflector, which extends the exhaust gas path.

Air supplied from outside only thanks to biult-in an external air inlet fi 125mm. Air adjustment with just one regulator which prevents from improper usage.

Triple air system of combustion chamber: primary air- directed to combustion plate; secondary air supplied by the holes located in the back wall. Additionally, the system of air clean glass has been applied (curtain air).

SAFETY AT THE HIGHEST LEVEL

Perfect tightness thanks to the solid welds made in a noble gas shielding.

All steel elements are laser cut and bent on CNC bending machines.

Front of insert is equipped with a heat-resistant ceramics that can withstand temperatures up to 660oC.

ECOLOGICAL COMBUSTION

The unit meets the requirements of Ecodesign standards and the restrictions of the BImSchV 2 standard, which determines the maximum CO emission.

CONVENIENT TO USE

Grateless fireplace insert – full combustion on the dust what means that firewood burns into fine ash at minimum amount. Obtained thermal energy from firewood is exploited to the maximum. The bottom plate of the insert is significantly reduced relative to the door.

Reduced soot deposition through a system of pure glass (air curtain).

The special perforated design of the handle protects against excessive heating, which has the influence on the high comfort of using the fireplace.

MODERN DESIGN

A fireplace insert with two panes compiled with each other at angles (without brackets).

Decorative, heat-resistant glass that can withstand temperatures up to 660°C. It gives a fireplace a modern and elegant look, visually enlarges the front of the insert.

Doors are equipped with modern handle.
